33 Appendix A: Master List of Constants

33.1 ESMC_CALKIND

This flag is documented in section 26.2.1.

33.2 ESMC_COORDSYS

This flag is documented in section 19.2.1.


33.3 ESMC_DECOMP

DESCRIPTION:
Indicates how DistGrid elements are decomposed over DEs.

The type of this flag is:

type(ESMC_Decomp_Flag)

The valid values are:

ESMC_DECOMP_BALANCED
Decompose elements as balanced as possible across DEs. The maximum difference in number of elements per DE is 1, with the extra elements on the lower DEs.
ESMC_DECOMP_CYCLIC
Decompose elements cyclically across DEs.
ESMC_DECOMP_RESTFIRST
Divide elements over DEs. Assign the rest of this division to the first DE.
ESMC_DECOMP_RESTLAST
Divide elements over DEs. Assign the rest of this division to the last DE.
ESMC_DECOMP_SYMMEDGEMAX
Decompose elements across the DEs in a symmetric fashion. Start with the maximum number of elements at the two edge DEs, and assign a decending number of elements to the DEs as the center of the decomposition is approached from both sides.

type(ESMC_ExtrapMethod_Flag)

DESCRIPTION:
Specify which extrapolation method to use on unmapped destination points after regridding.

The type of this flag is:

type(ESMC_ExtrapMethod_Flag)

The valid values are:

ESMC_EXTRAPMETHOD_NONE
Indicates that no extrapolation should be done.
ESMC_EXTRAPMETHOD_NEAREST_STOD
Inverse distance weighted average. Here the value of a destination point is the weighted average of the closest N source points. The weight is the reciprocal of the distance of the source point from the destination point raised to a power P. All the weights contributing to one destination point are normalized so that they sum to 1.0. The user can choose N and P when using this method, but defaults are also provided.
ESMC_EXTRAPMETHOD_NEAREST_IDAVG
Nearest source to destination. Here each destination point is mapped to the closest source point. A given source point may go to multiple destination points, but no destination point will receive input from more than one source point.

33.4 ESMC_FILEFORMAT

This flag is documented in section 19.2.6.

33.5 ESMC_GRIDITEM

This flag is documented in section 19.2.2.

33.6 ESMC_GRIDSTATUS

This flag is documented in section 19.2.3.


33.7 ESMC_INDEX

DESCRIPTION:
Indicates whether index is local (per DE) or global (per object).

The type of this flag is:

type(ESMC_IndexFlag)

The valid values are:

ESMC_INDEX_DELOCAL
Indicates that DE-local index space starts at lower bound 1 for each DE.
ESMC_INDEX_GLOBAL
Indicates that global indices are used. This means that DE-local index space starts at the global lower bound for each DE.
ESMC_INDEX_USER
Indicates that the DE-local index bounds are explicitly set by the user.


33.8 ESMC_LINETYPE

DESCRIPTION:
This argument allows the user to select the path of the line which connects two points on the surface of a sphere. This in turn controls the path along which distances are calculated and the shape of the edges that make up a cell.

The type of this flag is:

type(ESMC_LineType_Flag)

The valid values are:

ESMC_LINETYPE_CART
Cartesian line. When this option is specified distances are calculated in a straight line through the 3D Cartesian space in which the sphere is embedded. Cells are approximated by 3D planes bounded by 3D Cartesian lines between their corner vertices. When calculating regrid weights, this line type is currently the default for the following regrid methods: ESMC_REGRIDMETHOD_BILINEAR, ESMC_REGRIDMETHOD_PATCH, ESMC_REGRIDMETHOD_NEAREST_STOD, and ESMC_REGRIDMETHOD_NEAREST_DTOS.
ESMC_LINETYPE_GREAT_CIRCLE
Great circle line. When this option is specified distances are calculated along a great circle path (the shortest distance between two points on a sphere surface). Cells are bounded by great circle paths between their corner vertices. When calculating regrid weights, this line type is currently the default for the following regrid method: ESMC_REGRIDMETHOD_CONSERVE.

33.9 ESMC_LOGKIND

This flag is documented in section 31.2.1.

33.10 ESMC_LOGMSG

This flag is documented in section 31.2.2.

33.11 ESMC_MESHELEMTYPE

This flag is documented in section 20.2.1.


33.12 ESMF_METHOD

DESCRIPTION:
Specify standard ESMF Component method.

The type of this flag is:

type(ESMF_Method_Flag)

The valid values are:

ESMF_METHOD_FINALIZE
Finalize method.
ESMF_METHOD_INITIALIZE
Initialize method.
ESMF_METHOD_READRESTART
ReadRestart method.
ESMF_METHOD_RUN
Run method.
ESMF_METHOD_WRITERESTART
WriteRestart method.

33.13 ESMC_POLEKIND

This flag is documented in section 19.2.4.


33.14 ESMC_REDUCE

DESCRIPTION:
Indicates reduce operation.

The type of this flag is:

type(ESMC_Reduce_Flag)

The valid values are:

ESMC_REDUCE_SUM
Use arithmetic sum to add all data elements.
ESMC_REDUCE_MIN
Determine the minimum of all data elements.
ESMC_REDUCE_MAX
Determine the maximum of all data elements.


33.15 ESMC_REGION

DESCRIPTION:
Specifies various regions in the data layout of an Array or Field object.

The type of this flag is:

type(ESMC_Region_Flag)

The valid values are:

ESMC_REGION_TOTAL
Total allocated memory.
ESMC_REGION_SELECT
Region of operation-specific elements.
ESMC_REGION_EMPTY
The empty region contains no elements.

33.16 ESMC_REGRIDMETHOD

This flag is documented in section 16.2.1.

33.17 ESMC_STAGGERLOC

This flag is documented in section 19.2.5.


33.18 ESMC_TYPEKIND

DESCRIPTION:
Named constants used to indicate type and kind combinations supported by the overloaded ESMC interfaces. The corresponding Fortran kind-parameter constants are described in the ESMF_TYPEKIND section of Appendices of the ESMF Fortran reference manual.

The type of these named constants is:

type(ESMC_TypeKind_Flag)

The named constants are:

ESMC_TYPEKIND_I1
Indicates 1 byte integer.
(Only available if ESMF was built with ESMF_NO_INTEGER_1_BYTE = FALSE. This is not the default.)
ESMC_TYPEKIND_I2
Indicates 2 byte integer.
(Only available if ESMF was built with ESMF_NO_INTEGER_2_BYTE = FALSE. This is not the default.)
ESMC_TYPEKIND_I4
Indicates 4 byte integer.
ESMC_TYPEKIND_I8
Indicates 8 byte integer.
ESMC_TYPEKIND_R4
Indicates 4 byte real.
ESMC_TYPEKIND_R8
Indicates 8 byte real.


33.19 ESMC_UNMAPPEDACTION

DESCRIPTION:
Indicates what action to take with respect to unmapped destination points and the entries of the sparse matrix that correspond to these points.

The type of this flag is:

type(ESMC_UnmappedAction_Flag)

The valid values are:

ESMC_UNMAPPEDACTION_ERROR
An error is issued when there exist destination points in a regridding operation that are not mapped by corresponding source points.
ESMC_UNMAPPEDACTION_IGNORE
Destination points which do not have corresponding source points are ignored and zeros are used for the entries of the sparse matrix that is generated.

34 Appendix B: A Brief Introduction to UML

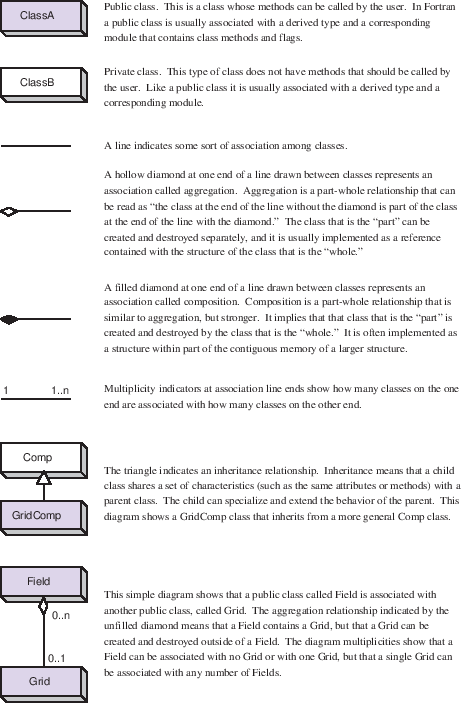

The schematic below shows the Unified Modeling Language (UML) notation for the class diagrams presented in this Reference Manual. For more on UML, see references such as The Unified Modeling Language Reference Manual, Rumbaugh et al, [2].

\scalebox{0.8}{\includegraphics{Appendix_uml}}


35 Appendix C: ESMF Error Return Codes

The tables below show the possible error return codes for Fortran and C methods.


 =====================================
 Fortran Symmetric Return Codes 1-500
 =====================================

  ESMF_SUCCESS               0
  ESMF_RC_OBJ_BAD            1
  ESMF_RC_OBJ_INIT           2
  ESMF_RC_OBJ_CREATE         3
  ESMF_RC_OBJ_COR            4
  ESMF_RC_OBJ_WRONG          5
  ESMF_RC_ARG_BAD            6
  ESMF_RC_ARG_RANK           7
  ESMF_RC_ARG_SIZE           8
  ESMF_RC_ARG_VALUE          9
  ESMF_RC_ARG_DUP           10
  ESMF_RC_ARG_SAMETYPE      11
  ESMF_RC_ARG_SAMECOMM      12
  ESMF_RC_ARG_INCOMP        13
  ESMF_RC_ARG_CORRUPT       14
  ESMF_RC_ARG_WRONG         15
  ESMF_RC_ARG_OUTOFRANGE    16
  ESMF_RC_ARG_OPT           17
  ESMF_RC_NOT_IMPL          18
  ESMF_RC_FILE_OPEN         19
  ESMF_RC_FILE_CREATE       20
  ESMF_RC_FILE_READ         21
  ESMF_RC_FILE_WRITE        22
  ESMF_RC_FILE_UNEXPECTED   23
  ESMF_RC_FILE_CLOSE        24
  ESMF_RC_FILE_ACTIVE       25
  ESMF_RC_PTR_NULL          26
  ESMF_RC_PTR_BAD           27
  ESMF_RC_PTR_NOTALLOC      28
  ESMF_RC_PTR_ISALLOC       29
  ESMF_RC_MEM               30
  ESMF_RC_MEM_ALLOCATE      31
  ESMF_RC_MEM_DEALLOCATE    32
  ESMF_RC_MEMC              33
  ESMF_RC_DUP_NAME          34
  ESMF_RC_LONG_NAME         35
  ESMF_RC_LONG_STR          36
  ESMF_RC_COPY_FAIL         37
  ESMF_RC_DIV_ZERO          38
  ESMF_RC_CANNOT_GET        39
  ESMF_RC_CANNOT_SET        40
  ESMF_RC_NOT_FOUND         41
  ESMF_RC_NOT_VALID         42
  ESMF_RC_INTNRL_LIST       43
  ESMF_RC_INTNRL_INCONS     44
  ESMF_RC_INTNRL_BAD        45
  ESMF_RC_SYS               46
  ESMF_RC_BUSY              47
  ESMF_RC_LIB               48
  ESMF_RC_LIB_NOT_PRESENT   49
  ESMF_RC_ATTR_UNUSED       50
  ESMF_RC_OBJ_NOT_CREATED   51
  ESMF_RC_OBJ_DELETED       52
  ESMF_RC_NOT_SET           53
  ESMF_RC_VAL_WRONG         54
  ESMF_RC_VAL_ERRBOUND      55
  ESMF_RC_VAL_OUTOFRANGE    56
  ESMF_RC_ATTR_NOTSET       57
  ESMF_RC_ATTR_WRONGTYPE    58
  ESMF_RC_ATTR_ITEMSOFF     59
  ESMF_RC_ATTR_LINK         60
  ESMF_RC_BUFFER_SHORT      61
  ESMF_RC_TIMEOUT           62
  ESMF_RC_FILE_EXISTS       63
  ESMF_RC_FILE_NOTDIR       64
  ESMF_RC_MOAB_ERROR        65
  ESMF_RC_NOOP              66
  ESMF_RC_NETCDF_ERROR      67

 68-499 reserved for future Fortran symmetric return code definitions

 =====================================
 C/C++ Symmetric Return Codes 501-999
 =====================================

  ESMC_RC_OBJ_BAD          501
  ESMC_RC_OBJ_INIT         502
  ESMC_RC_OBJ_CREATE       503
  ESMC_RC_OBJ_COR          504
  ESMC_RC_OBJ_WRONG        505
  ESMC_RC_ARG_BAD          506
  ESMC_RC_ARG_RANK         507
  ESMC_RC_ARG_SIZE         508
  ESMC_RC_ARG_VALUE        509
  ESMC_RC_ARG_DUP          510
  ESMC_RC_ARG_SAMETYPE     511
  ESMC_RC_ARG_SAMECOMM     512
  ESMC_RC_ARG_INCOMP       513
  ESMC_RC_ARG_CORRUPT      514
  ESMC_RC_ARG_WRONG        515
  ESMC_RC_ARG_OUTOFRANGE   516
  ESMC_RC_ARG_OPT          517
  ESMC_RC_NOT_IMPL         518
  ESMC_RC_FILE_OPEN        519
  ESMC_RC_FILE_CREATE      520
  ESMC_RC_FILE_READ        521
  ESMC_RC_FILE_WRITE       522
  ESMC_RC_FILE_UNEXPECTED  523
  ESMC_RC_FILE_CLOSE       524
  ESMC_RC_FILE_ACTIVE      525
  ESMC_RC_PTR_NULL         526
  ESMC_RC_PTR_BAD          527
  ESMC_RC_PTR_NOTALLOC     528
  ESMC_RC_PTR_ISALLOC      529
  ESMC_RC_MEM              530
  ESMC_RC_MEM_ALLOCATE     531
  ESMC_RC_MEM_DEALLOCATE   532
  ESMC_RC_MEMC             533
  ESMC_RC_DUP_NAME         534
  ESMC_RC_LONG_NAME        535
  ESMC_RC_LONG_STR         536
  ESMC_RC_COPY_FAIL        537
  ESMC_RC_DIV_ZERO         538
  ESMC_RC_CANNOT_GET       539
  ESMC_RC_CANNOT_SET       540
  ESMC_RC_NOT_FOUND        541
  ESMC_RC_NOT_VALID        542
  ESMC_RC_INTNRL_LIST      543
  ESMC_RC_INTNRL_INCONS    544
  ESMC_RC_INTNRL_BAD       545
  ESMC_RC_SYS              546
  ESMC_RC_BUSY             547
  ESMC_RC_LIB              548
  ESMC_RC_LIB_NOT_PRESENT  549
  ESMC_RC_ATTR_UNUSED      550
  ESMC_RC_OBJ_NOT_CREATED  551
  ESMC_RC_OBJ_DELETED      552
  ESMC_RC_NOT_SET          553
  ESMC_RC_VAL_WRONG        554
  ESMC_RC_VAL_ERRBOUND     555
  ESMC_RC_VAL_OUTOFRANGE   556
  ESMC_RC_ATTR_NOTSET      557
  ESMC_RC_ATTR_WRONGTYPE   558
  ESMC_RC_ATTR_ITEMSOFF    559
  ESMC_RC_ATTR_LINK        560
  ESMC_RC_BUFFER_SHORT     561
  ESMC_RC_TIMEOUT          562
  ESMC_RC_FILE_EXISTS      563
  ESMC_RC_FILE_NOTDIR      564
  ESMC_RC_MOAB_ERROR       565
  ESMC_RC_NOOP             566
  ESMC_RC_NETCDF_ERROR     567

 568-999 reserved for future C/C++ symmetric return code definitions

 =====================================
 C/C++ Non-symmetric Return Codes 1000
 =====================================

  ESMC_RC_OPTARG_BAD      1000
